SBR20-Gcr15(SUJ2) Linear Bearing Aluminum Support

Description

SBR20-รางลิเนียแบริ่ง Rails Support

Item specifics

Guide Length:   1000-2000mm
Guide Width or Diameter:   20mm
Model Number:   SBR20-1000-2000mm.
Material:   Bearing steel (Grc15, SUJ2)
Surface treatment:   Electroplating hard chrome
Heat treatment:   hot quenching on surface
Hardness:   HRC56 – HRC62

Product Description:

High Quality CNC Linear Rail Linear Guide SBR20 Length 1000-2000mm.
Packing including: 1pc CNC linear rail SBR20 (length 1000mm) shaft + aluminum support
The material and length of linear rail is customized. contact us if you need other specifications.

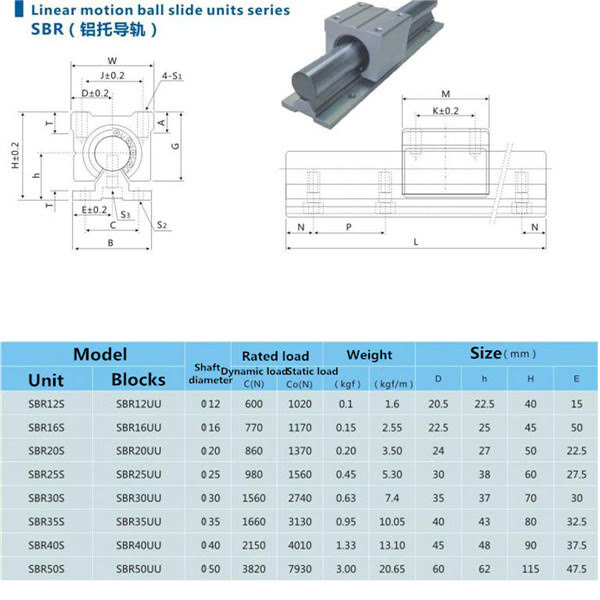

The details of CNC linear rail:

Material:  Bearing steel (Grc15, SUJ2)
Surface treatment:  Electroplating hard chrome
Heat treatment:  hot quenching on surface
Hardness:   HRC56-HRC62
The connection screw of rail to seat:   M5*18
The error of length dimension:  ±2cm

SBR20-รางลิเนียแบริ่ง Rails Support Packaging Details

Unit Type: piece
Package Weight: 2kg
Package Size: 100cm x 8cm x 8cm (40in x 3.15in x 3.15in)
