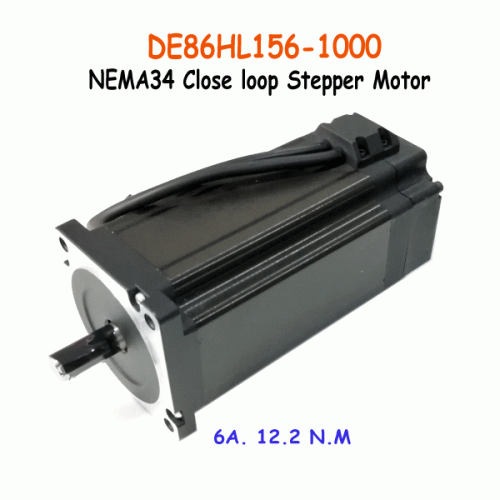

86HL156-1000 Close loop Stepper Motor 12.2Nm.6A

Description

86HL156-1000 Closeloop Stepper Motor 12.2Nm.6A

86mm two-phase closed loop stepper motor

Specification

Phase: 2phase
Current: 6A
Resistance: 0.76 Ohm
Inductance: 8.4 mH
Rated torque: 12.2 Nm.
Rotor Inertia: 4000 g/cm2
Dielectric Strength: 1000VDC
Insulation Resistance: >500M(500V)

Product Introduction

86mm two-phase closed loop stepper motor
Product Introduction
Item Specifications Step accuracy ±5% Temperature rise 80℃ Max
Ambient temperature -20℃~+50℃ Insulation resistance 100M Ω Min 500VDC Withstand voltage 500V AC 1minute
Maximum radial runout 0.06mm (450g load)
Maximum axial runout 0.08mm (450g load)

Packing:

1pcs x 86HL156-1000 Closeloop Stepper Motor
weight:  6.0Kg
Size: 30cm x 20cm x 15cm
