Connected Diagrams :
*ลิ้งค์ Connections for other functions

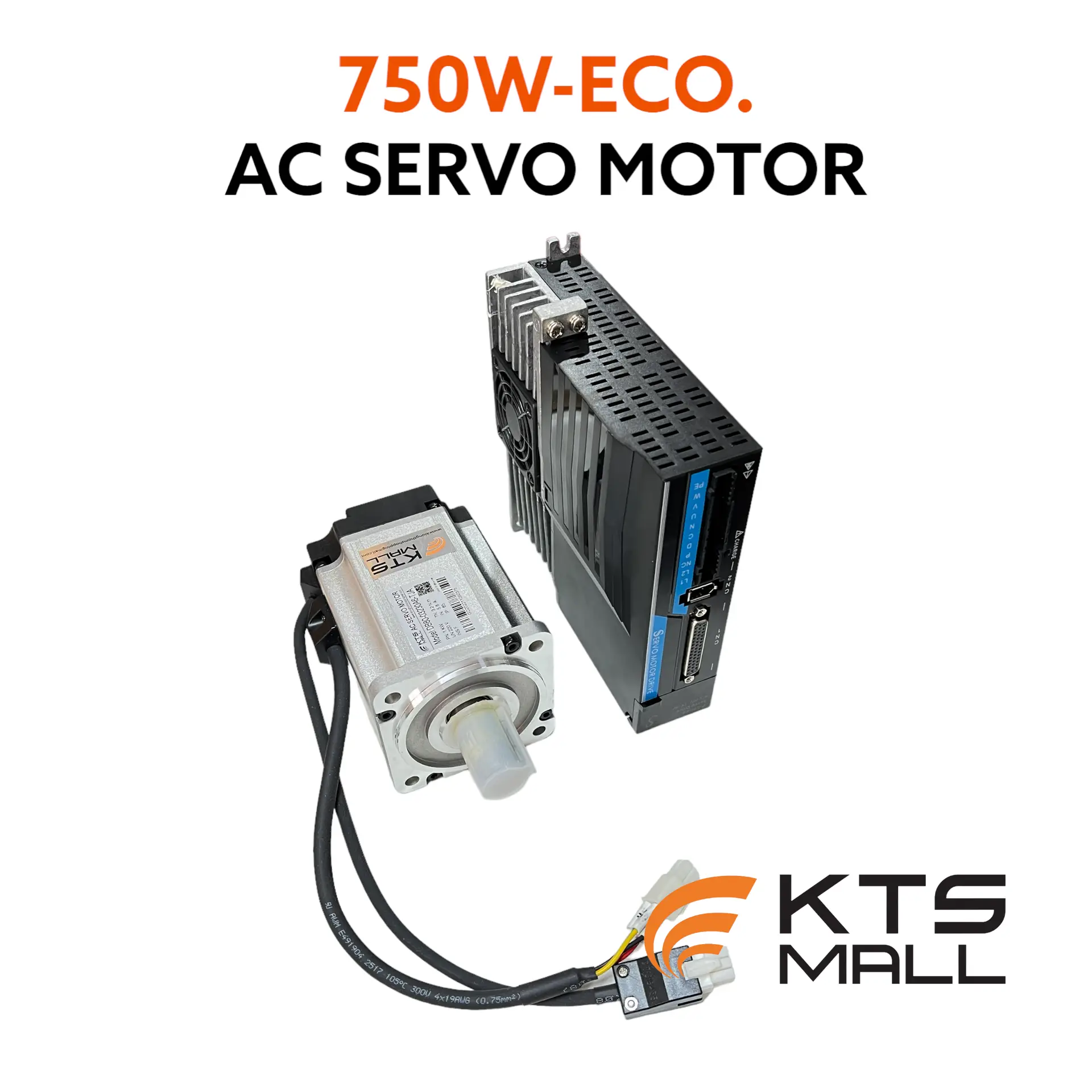

750W ECONOMICAL AC Servo Motor
Servo Drive
Model: P100S-75
Power: 0.75KW~1KW
Motor: DM80-02430A6-TJA 2.4NM.
Main Circuit: 1 phase AC220V-15%~10% 50/60Hz
Control Mode: 0：Position. 1：Speed. 2：Torque. 3：Position and speed. 4：Position and
torque. 5： Speed and torque
Protection Function: Over speed, Over voltage, Under voltage,Overload, Abnormal of main
power, Abnormal encoder, Out of position error etc.
Monitor Function: Speed, Current position, Command pulse accumulation,Position
deviation, Motor torque, Motor current, Running state etc.
Control Input: 1:Servo on 2:Alarm clearance 3:CCW drive inhibition 4:CW drive
inhibition 5:Deviation counter clearance 6:Command pulse inhibition
7:CCW torque limit 8:CW torque limit
Control Output: Servo ready/Servo alarm/Positioning completion/Mechanical braking
Regeneration Braking: Built-in/ Built-out
Display: 5 LED digital display and 4 keys
Communication: RS485
Position Control Mode
Input Mode: 0：pulse+direction, 1：CCW/CW pulse, 2：A/B phase orthogonal pulse,3：Internal position control
Electronic gear ratio: 1-32767/1-32767
1 Set x 750W ECONOMICAL AC Servo Motor

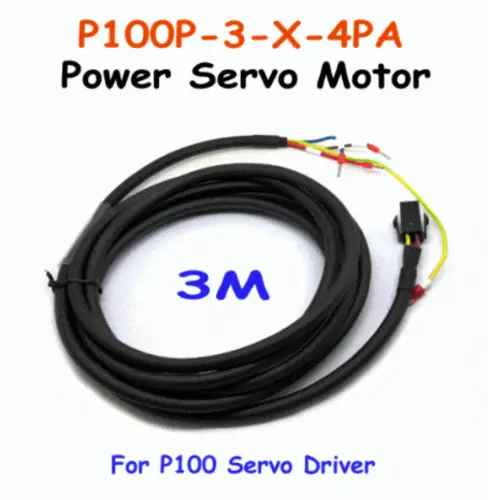

1pcs x P100P-3-X-4PA Power Cable

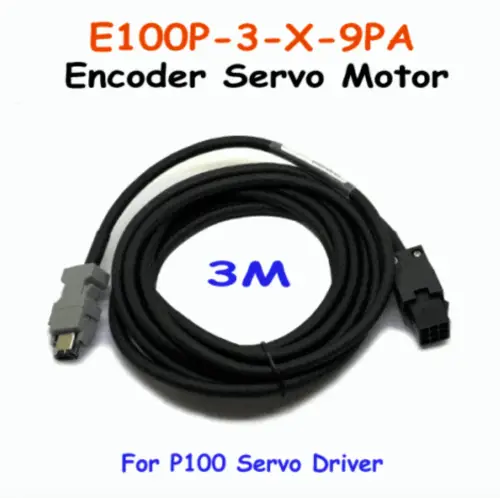

1pcs x E100P-3-X-9PA Encoder Cable
*Download USER MANUAL
