Specification:
Place of Origin: China
Condition: New
Applicable Industries: Manufacturing Plant, Energy & Mining, Other
Weight (KG): 32
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Application: Aluminum stone cutting
Maximum Torque: 11.94N/m
Drive: Three-phase 220/380 v
Operating Speed: 6000rpm/min
Warranty: 1 Year
Core Components: Gearbox, Motor
Usage: aluminium cutting
Cooling type: Air cooling
Applicable People: Machinery equipment factory
Rated power: 7.5KW
Weight: 32KG
Running speed: 6000rpm/min
Material: aluminium alloy housing
Product Description

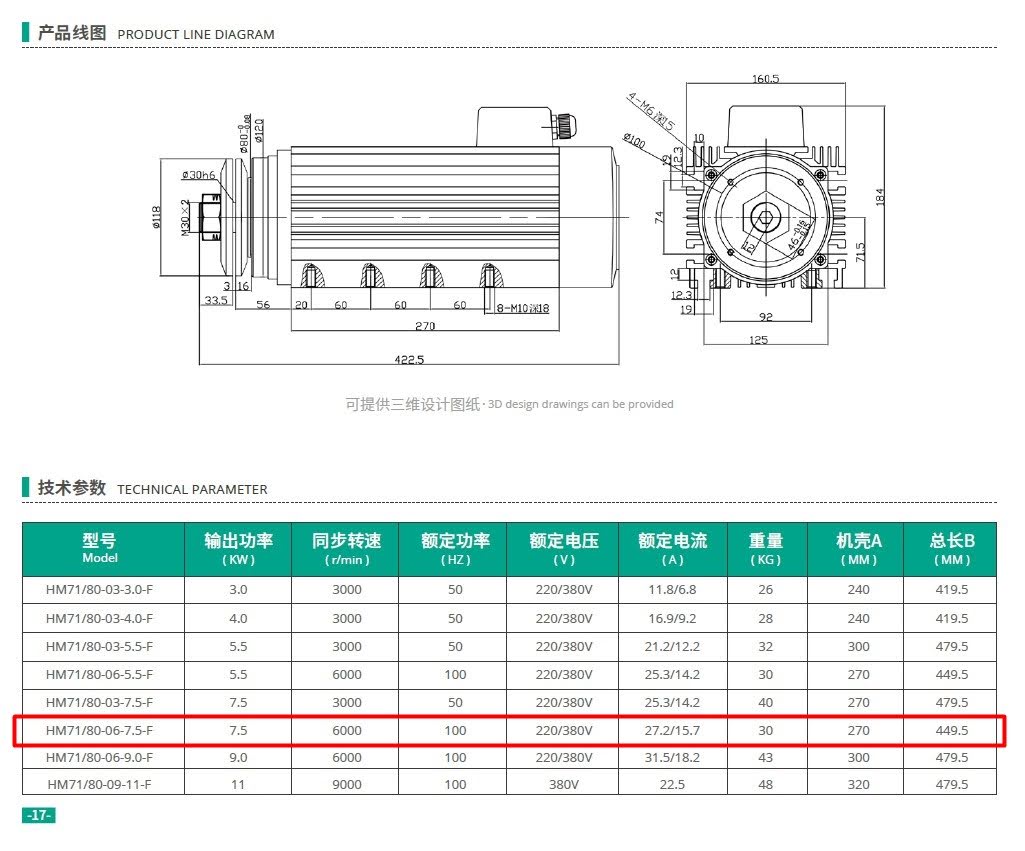

Spindle type: HM7180-06-7.5-F
Current: 27.5/15.7A
Voltage: 220V/380V
Cool: Air cooling
Speed: 6000rpm
Frequency: 100HZ
Power: 7.5KW
Weight: 32Kg
Technical Features
Highest frequency: Vector control 0～600Hz, VF control 0～1200Hz
Carrier frequency: 1K～15kHz the carrier frequency can be adjusted automatically according to the load characteristics.
Input frequency resolution: Digital setting: 0.01Hz Analog setting: maximum frequency × 0.1%
Control mode: Open loop vector control (SVC), V/F control
Starting torque: G type machine: 0.5Hz/180% (open loop vector control)
P type machine: 0.5Hz/120% (open loop vector control)
Speed range: 1: 200 (open loop vector control)
speed control accuracy: Open-loop vector control: ≤±0.5% (rated synchronous speed)
Speed control stability: Open-loop vector control: ≤±0.3% (rated synchronous speed)
Torque Response: ≤40ms (open loop vector control)
Overload capability: Model G: 150% rated current for 60 seconds; 180% rated current for 5 seconds
P-type machine: 120% rated current for 60 seconds; 150% rated current for 5 seconds
Torque boost: Automatic torque boost; manual torque boost 0.1%～30.0%
V/F curve: Three ways: linear type; multi-point type; square type V/F curve
Acceleration and
deceleration curve : Linear or S-curve acceleration and deceleration mode;four kinds of acceleration and deceleration time;acceleration and deceleration time range 0.0s ~ 3000.0s
DC brake: DC braking frequency: 0.0Hz～maximum frequency, braking time: 0.0～36.0 seconds, braking action current value: 0.0%～100.0%
Jogging Control: Jog frequency range: 0.00Hz～50.00Hz; Jog acceleration and deceleration time 0.0s～3000.0s
Simple PLC & multi step speed operation: Built-in PLC or control terminal,16 steps speed can be set
Built-in PID: Process control closed-loop control system can be easily realized
