Water Level Meter 2 axis DXL360 Dual Axis Digital Protractor 0.02 ° + Adapter.

More Views

Water Level Meter 2 axis DXL360 Dual Axis Digital Protractor 0.02 ° + Adapter.

SKU:000821

Availability: In stock

Water Level Meter 2 axis DXL360 Dual Axis Digital Protractor 0.02 ° + Adapter.

฿3,500.00

Details



เครื่องวัดระดับน้ำ 2 แกน DXL360 Dual Axis Digital Protractor 0.02° + Adapter

DXL360 Dual Axis Digital Protractor 0.02° + Adapter

Introduction
- The Dual-Axis Digital Protractor DXL360 v2.1 includes a PC Adapter accessory to
connect to computer, laptop or smartphone for data logging and saving as an Excel file.

- DXL360 is a low cost and high accurate device for measuring dual-axis surface and
single-axis inclinations including tilt angle.

- The DXL360 levelling sensor is based on the revolutionary technology called
Micro-Electro-Mechanical-Systems (MEMS), in conjunction with sophisticated software
techniques to accomplish a guaranteed accuracy of better than ±0.15º and with
measurement resolution of 0.02º in the favourable measurement range.

- The Dual Axis Digital Protractor DXL360 v2.1 provides ultra high precision
measurement of angle with other distinguished features such as large bright
mono-colour digital numeric and graphic displays with backlight, beeper alert
and precision settings.

- Recommended for industrial, engineering and scientific applications.

PC Communication
The Dual Axis Digital Protractor DXL360 v2.1 has a PC data logging function enabling
X and Y inclination data to be downloaded and saved as an XLS file for monitoring and
remote computer analysis.

RS232 PC USB adapter accessory is available. The charger cable is used to connect the DXL360 to the PC.

Main Features: DXL360 Dual Axis Digital Protractor 0.02° + Adapter
High accuracy: <±0.15° (+1%).
High resolution: 0.02°.
Dual and single axis with large bright mono-colour digital numeric and graphic displays with backlight.
Graphic e-bubble X and Y displays.
Tilt angle between x and y axes.
Rechargeable Li-ion battery.
V-shaped edges on all sides to fit on round surfaces like pipes.
Embedded magnets to all 4 corners and the back .
Screw sockets on back for attachment.
Audible alarm at selectable angle.
Owner calibration function.

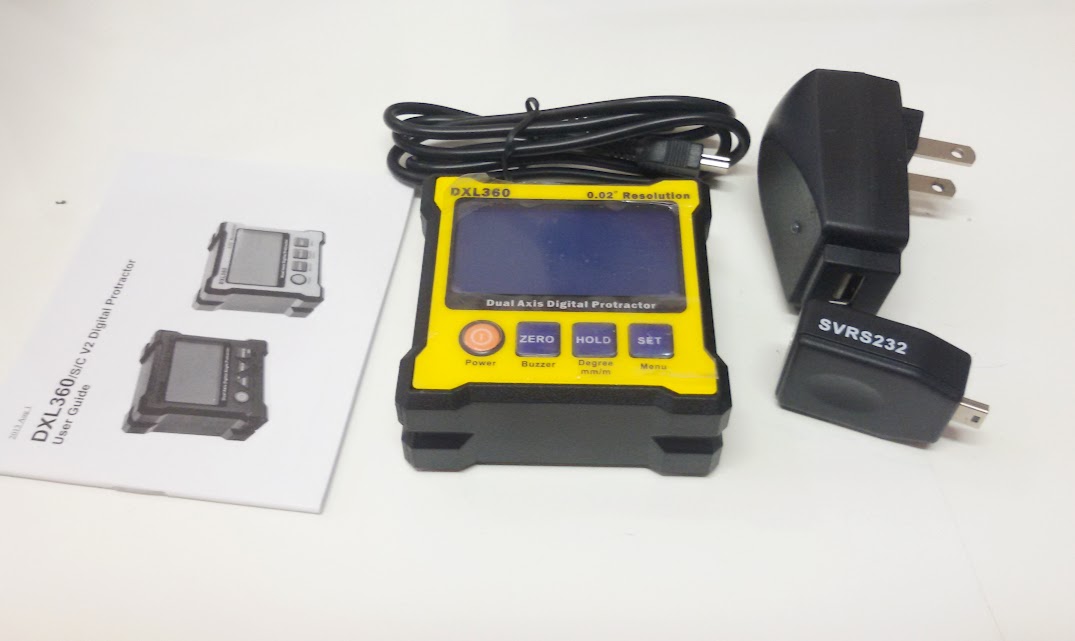

Protractor supplied with integrated battery, UK charger and USB connecting cable, Bluetooth adapter plus instruction & calibration manual.

Technical Specification: DXL360 Dual Axis Digital Protractor 0.02° + Adapter
Accuracy: 0° to 20° ±0.1°
   20° to 70° ±0.2°
   70° to 90° ±0.1°
Measuring range: Single axis 360°
   Dual axis: ±40°
   Tilt ±50%
Resolution: 0.02°
Response time: <0.4 second
Audio sound: 60dB @ 30cm
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 60°C
User interface: mono-colour LCD with backlight
Supply power: Rechargeable 3.7v Li-Ion battery
Charger port: 5v 500mA mini type-B USB port
Power consumption: Standby 200uA Operation 20mA.
Auto power-off: 30 minutes (optional)
Standby battery life: 2000 hours
Operating battery life: 40 hours
Dimensions: 70(L) x 70(W) x 28(H) mm
Weight: 132g
Attachment: 2 x M3 sockets on back
MIB ref: DXL360 v2.1
